Description
Our microporous aluminum honeycomb cores are manufactured using advanced technology and high-quality materials to ensure durability and reliability. Aluminum honeycomb structures are composed of many hexagonal cells and offer excellent strength-to-weight ratio and structural integrity. Micropores on the surface of the core are precisely engineered to optimize air circulation and light transmission for laser machines, air purifiers and light fixtures.
Available Selling Types
Feature
Microporous aluminum honeycomb core has several key properties that make it stand out in the market. First, it is lightweight and easy to operate and install. Secondly, the excellent mechanical properties of the magnetic core, such as high compressive strength and rigidity, ensure the reliability and stability of the final product. Additionally, advanced manufacturing processes ensure uniformity and consistency in battery size and shape, resulting in improved performance. Finally, micropores allow for effective air circulation, promoting effective cooling and air purification.
Scope

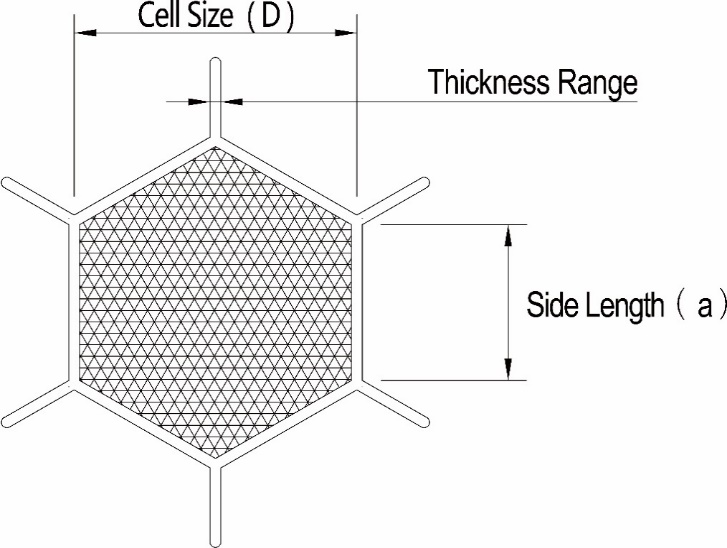

| Micro-holes Aluminum Honeycomb Core Specification | |||||||||
 |
Honeycomb Type | Super micro-holes Honeycomb | Micro-holes Honeycomb | ||||||
| Side Length (mm) | A=0.5 | A=0.6 | A=1 | A=1.5 | A=1.83 | A=2 | A=2.5 | A=3 | |
| Cell Size | 1/30 inch 0.85mm |
1/25 inch 1.0mm |
1/15 inch 1.7mm |
1/10 inch 2.54mm |
1/8 inch 3.18mm |
1/8 inch 3.18mm |
1/6 inch 4.24mm |
1/5 inch 5.08mm |
|
| Dimension After Expansion (LxWxH) |
Customized sizes are accepted. | ||||||||
| Foil Type & Thickness Range | AA3003H18 (0.03mm, 0.04mm, 0.05mm, 0.06mm, 0.07mm, 0.08mm, 0.09mm, 0.1mm) AA5052H18(0.04mm, 0.05mm, 0.06mm, 0.07mm, 0.08mm, 0.09mm, 0.1mm) |
||||||||
To help you better understand our microcellular aluminum honeycomb core, we provide the following parameters: honeycomb size, thickness, sheet size and density. Unit size can be customized according to your requirements, ranging from small to large. Core thickness can vary depending on the intended application. Board sizes are available in standard sizes but can be customized to meet specific needs. Our products also come in a variety of densities, providing the flexibility to meet different performance needs.
Parameter
| Aluminum Honeycomb Core Technical Specification | ||||||
| Flatwise Compressive Strength & Shear Strength | ||||||
| Denisty | Cell size | Cell size | Aluminum Foil Thickness | Mechanical Features Under Room Temperature | ||
| (Mpa) | ||||||
| (kg/m³) | (mm) | (Inch) | (mm) | Flatwise Compressive Strength | Vertical Shear Strength | Flatwise Shear Strength |
| 27 | 8.47 | 1/3 | 0.03 | 0.53 | 0.44 | 0.24 |
| 31 | 8.47 | 1/3 | 0.04 | 0.66 | 0.53 | 0.3 |
| 33 | 6.35 | 1/4 | 0.03 | 0.73 | 0.58 | 0.33 |
| 39 | 6.35 | 1/4 | 0.04 | 0.98 | 0.75 | 0.43 |
| 41 | 8.47 | 1/3 | 0.05 | 1.07 | 0.8 | 0.47 |
| 44 | 5.08 | 1/5 | 0.03 | 1.18 | 0.89 | 0.52 |
| 49 | 8.47 | 1/3 | 0.06 | 1.43 | 1.03 | 0.6 |
| 52 | 5.08 | 1/5 | 0.04 | 1.6 | 1.15 | 0.67 |
| 53 | 6.35 | 1/4 | 0.05 | 1.65 | 1.18 | 0.69 |
| 61 | 6.35 | 1/4 | 0.06 | 2.07 | 1.48 | 0.86 |
| 66 | 3.18 | 1/8 | 0.03 | 2.39 | 1.7 | 1 |
| 67 | 8.47 | 1/3 | 0.08 | 2.45 | 1.74 | 1.02 |
| 68 | 5.08 | 1/5 | 0.05 | 2.5 | 1.78 | 1.04 |
| 77 | 3.18 | 1/8 | 0.04 | 3.1 | 2.18 | 1.25 |
| 108 | 4.24 | 1/6 | 0.06 | 4 | 2.8 | 1.6 |
Application
Our microporous aluminum honeycomb cores are widely used in various industries. For laser machines, the core acts as an ideal ventilation system, ensuring efficient heat dissipation. Additionally, the microholes create a consistent and evenly distributed light path, allowing for precise and accurate laser cutting or engraving. This air purifier benefits from core high-efficiency air circulation properties for effective filtration and purification. Luminaires using our honeycomb cores enhance light transmission, resulting in brighter, more even lighting.
LED Light
Laser cutting machine
Air Filter
FAQ
1. Can microporous aluminum honeycomb core be customized for specific applications?
Absolutely! We understand that different industries have unique requirements and we have the ability to provide tailor-made solutions to meet your specific needs.
2. Is it easy to install the core?
Yes, our microcellular aluminum honeycomb core is designed for easy installation. Its lightweight nature and standardized panel sizes make installation easy and hassle-free.
3. How does the microporous aluminum honeycomb core improve the air purification effect of the air purifier?
The micropores on the surface of the core are conducive to efficient air circulation, allowing the air purifier to filter and purify the air more effectively. This results in a cleaner, healthier indoor environment.
Company Advantage
We are proud of our company's extensive experience, professional approach and commitment to delivering high-quality products. Our strong technical team, backed by university technology expertise, ensures continuous innovation and improvement. We invest a lot of money in technology research and development every year, keeping us at the forefront of the industry. Our strict quality control practices ensure the reliability and performance of every product that leaves the factory.
In summary, our microporous aluminum honeycomb core is a superior product that provides enhanced performance for laser machines, air purifiers and light fixtures. With its unique functions, customizable parameters, and wide range of applications, it is an ideal choice for various industries. We believe that, backed by our company's strengths and expertise, our products will meet and exceed your expectations. Choose our microporous aluminum honeycomb core and experience the difference it makes in your application.
