Features
1. Lightweight: Our aluminum honeycomb core is much lighter than other traditional building materials, making it easier to install and transport.
2.High Strength: The hexagonal cell structure enhances the strength of the core, allowing it to withstand heavy loads and impacts.
3.Excellent Thermal Insulation: The honeycomb core design creates air gaps that effectively trap heat or cold, providing excellent thermal insulation.
4. Excellent sound absorption performance: Aluminum honeycomb core has excellent sound absorption performance, which is very suitable for applications that require noise reduction.
Available Selling Types
Honeycomb Block
Aluminum honeycomb Slice（Unexpanded Honeycomb Core）
Expanded Honeycomb Core
Specification
Aluminum Honeycomb Core Specification
| Aluminum Honeycomb Core Specification | ||||||||||||||||
 |
Honeycomb Type | Super micro-aperture honeycomb | Micro-aperture honeycomb | Normal honeycomb | ||||||||||||

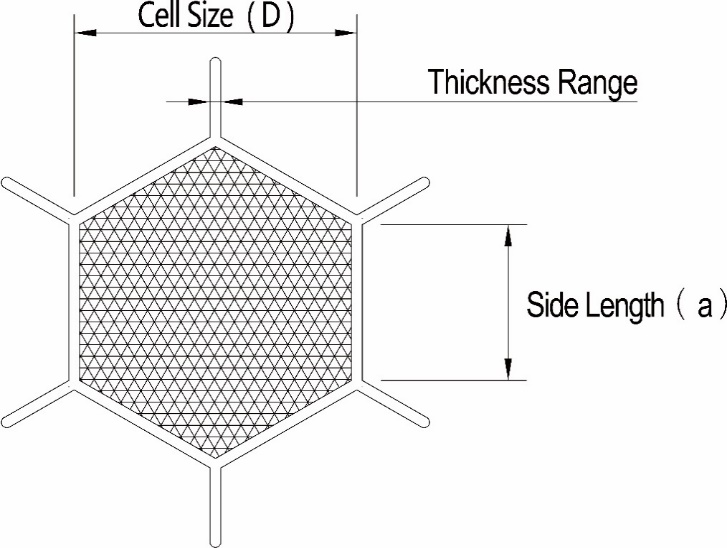

| Side Length (mm) | A=0.5 | A=0.6 | A=1 | A=1.5 | A=1.83 | A=2 | A=2.5 | A=3 | A=4 | A=5 | A=6 | A=7.5 | A=10 | A=12 | A=15 | |
| Cell Size | 1/30 inch
0.85mm |
1/25 inch
1.0mm |
1/15 inch
1.7mm |
1/10 inch
2.54mm |
1/8 inch
3.18mm |
1/8 inch
3.18mm |
1/6 inch
4.24mm |
1/5 inch
5.08mm |
1/4 inch
6.35mm |
1/3 inch
8.47mm |
3/8 inch
9.53mm |
1/2 inch
12.7mm |
3/4 inch
19.05mm |
4/5 inch
20.32mm |
1 inch
25.4mm |
|
| Dimension After Expansion
(LxWxH) |
Customized Sizes are accepted, height tolerance. | |||||||||||||||
| Foil Type & Thickness Range | AA3003H18 (0.03mm, 0.04mm, 0.05mm, 0.06mm, 0.07mm, 0.08mm, 0.09mm, 0.1mm)
AA5052H18(0.04mm, 0.05mm, 0.06mm, 0.07mm, 0.08mm, 0.09mm, 0.1mm) |
|||||||||||||||
Parameter
| Aluminum Honeycomb Core Technical Specification | ||||||
| Flatwise Compressive Strength & Shear Strength | ||||||
| Denisty | Cell size | Cell size | Aluminum Foil Thickness | Mechanical Features Under Room Temperature | ||
| (Mpa) | ||||||
| (kg/m³) | (mm) | (Inch) | (mm) | Flatwise Compressive Strength | Vertical Shear Strength | Flatwise Shear Strength |
| 27 | 8.47 | 1/3 | 0.03 | 0.53 | 0.44 | 0.24 |
| 31 | 8.47 | 1/3 | 0.04 | 0.66 | 0.53 | 0.3 |
| 33 | 6.35 | 1/4 | 0.03 | 0.73 | 0.58 | 0.33 |
| 39 | 6.35 | 1/4 | 0.04 | 0.98 | 0.75 | 0.43 |
| 41 | 8.47 | 1/3 | 0.05 | 1.07 | 0.8 | 0.47 |
| 44 | 5.08 | 1/5 | 0.03 | 1.18 | 0.89 | 0.52 |
| 49 | 8.47 | 1/3 | 0.06 | 1.43 | 1.03 | 0.6 |
| 52 | 5.08 | 1/5 | 0.04 | 1.6 | 1.15 | 0.67 |
| 53 | 6.35 | 1/4 | 0.05 | 1.65 | 1.18 | 0.69 |
| 61 | 6.35 | 1/4 | 0.06 | 2.07 | 1.48 | 0.86 |
| 66 | 3.18 | 1/8 | 0.03 | 2.39 | 1.7 | 1 |
| 67 | 8.47 | 1/3 | 0.08 | 2.45 | 1.74 | 1.02 |
| 68 | 5.08 | 1/5 | 0.05 | 2.5 | 1.78 | 1.04 |
| 77 | 3.18 | 1/8 | 0.04 | 3.1 | 2.18 | 1.25 |
| 108 | 4.24 | 1/6 | 0.06 | 4 | 2.8 | 1.6 |
Application
Our aluminum honeycomb cores are used in a wide variety of industries including aerospace, automotive, marine and construction. It is commonly used to construct lightweight panels for walls, ceilings and floors, providing strength and stability. Additionally, it is ideal for making lightweight and durable doors, ensuring security and long-lasting performance.
- Construction Panels: Our cores provide structural support and stability to panels used in commercial buildings, airports, hospitals and other construction applications.
- Furniture: Can be used to make lightweight yet strong doors, tabletops, partitions and other furniture applications.
- Transport: Our cores are ideal for making lightweight yet strong panels for vehicles such as cars, buses, trains and planes, reducing overall weight without compromising strength.
- Marine Industry: For marine applications where weight reduction is critical, such as shipbuilding, ship interiors and hulls.
Quality Certificate
FAQ
1. What are the advantages of using aluminum honeycomb core in panels and doors?
The use of aluminum honeycomb cores in panels and doors provides exceptional strength and durability while maintaining a lightweight design. It also has excellent thermal and sound insulation properties.
2. Can the aluminum honeycomb core be customized according to my specific requirements?
Yes, our aluminum honeycomb cores can be easily manufactured and customized to meet your specific size, thickness and battery configuration requirements.
3. Is your aluminum honeycomb core suitable for outdoor application?
Yes, our aluminum honeycomb cores are suitable for outdoor applications. It is made of high-quality aluminum alloy with a surface finish that can withstand various environmental conditions.
Company Profile
With over 10 years of experience, Alucrown is a leading Manufacturer and Supplier of Aluminum Honeycomb Core. We specialize in the production of high-quality honeycomb core materials for a variety of applications including panels and doors. Our commitment to excellence and continuous innovation has earned us a reputation for delivering products that meet the highest industry standards.
We follow a strict quality control process to ensure that each aluminum honeycomb core meets the strictest quality requirements. From raw material selection to final product inspection, our expert team ensures that each core is of the highest quality.
As a testament to our commitment to quality, our Aluminum Honeycomb Cores have been widely appreciated by clients across the globe. We have a huge export volume and supply our products to countries all over the world. Our dedication to customer satisfaction, combined with our expertise in honeycomb core production, sets us apart from our competitors.
In summary, our high-quality aluminum honeycomb cores are ideal for panel and door applications. Its lightweight yet strong design, excellent thermal and acoustic insulation, versatility and ability to customize make it the solution of choice for various industries. Choose our aluminum honeycomb cores for outstanding performance and reliability.
